Repairing ff-Hole Cracks in Violin Family Instruments

F-hole cracks are some of the most common cracks found on violin family instruments, but no two ever behave quite the same. They can range from tight hairline wing cracks to wider separations that require more creative clamping and reinforcement. Because of the shape of the f-hole and the limited access through it, each repair tends to require a slightly different approach to achieve proper alignment and support. The examples below show a variety of real-world situations and the different methods used to bring the cracks back together cleanly while preserving both the structure and the appearance of the instrument.

Violin ff crack

IMG 20251203 125638 572	IMG 20251203 130138 411	IMG 20251203 130200 595
IMG 20251214 150352 600

A bad cello ff crack.

IMG 20251114 134328 540	IMG 20251115 143243 772	IMG 20251117 102656 837
IMG 20251117 103142 793	IMG 20251118 100153 077

Here are a bunch of various ff clampng methods.

IMG 20251029 161823 915

IMG 20250828 170546 665

IMG 20250828 170622 174

FF Hole Cracks are very common for violin family instruments. Most of the time they can be glued from the outside. If the instrument is taken apart a well fitted cleat can be added to help strengthen that area.

IMG 20151223 111005

Another "ff" crack. Each one needs to be glued using a silghtly different technique.

IMG 20220625 135800 455

IMG 20220625 135813 220

This repair shows how a more open f-hole crack can be pulled back together and reinforced without removing the top. When the crack is wider, simply gluing it is not enough—the joint needs to be carefully aligned, compressed, and supported from the inside. By using a combination of controlled clamping from the outside and a reinforcing fiber strip placed through the f-hole, the crack can be brought back together securely. The process requires planning the clamp angles and working within the limited access of the f-hole, but it allows for a strong, clean repair while keeping the instrument fully assembled.

• Clean the crack: Make sure the crack is free of dirt and debris so the glue can penetrate properly.

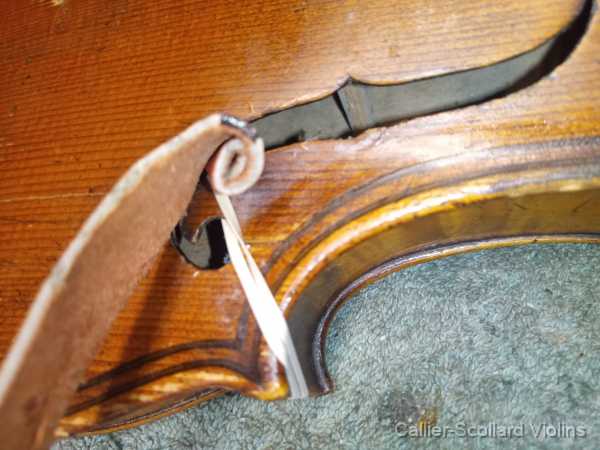

• Align the crack: Use a small roll of leather as a wedge to bring the crack together, allowing fine vertical adjustment while clamping.
• Apply additional clamping: Because this crack was fairly open, a second clamp was used to help pull the joint fully together.
• Prepare internal reinforcement: Cut a wide strip of fiber to reinforce the crack from the inside. The size is limited by the f-hole opening and clamp positioning.
• Plan clamp placement: Position the fiber strip on the outside of the instrument and determine the correct clamp angle needed to reach it through the f-hole.
• Mark the clamp angle: Mark the angle so the clamp can be guided accurately during installation.
• Hydrate the fiber strip: Soak the strip lightly with water to make it more flexible.
• Attach strip to clamp: Use a small drop of CA glue on the end of the clamp to temporarily hold the fiber strip in position.
• Apply wood glue: Coat the fiber strip with glue for the permanent bond.
• Install the reinforcement: Feed the clamp and fiber strip through the f-hole and position it over the crack, then tighten the clamp.
• Add secondary clamp: Use a second clamp as needed to ensure even pressure along the length of the strip.
• Allow to cure: Let the repair sit for about 24 hours.
• Remove the clamp: Gently wiggle the clamp to release it from the fiber strip.
• Seal the crack: Apply a clear finish to seal the crack and prevent dirt from collecting during future cleaning and polishing.

IMG 20241202 112038 078

IMG 20241202 113445 228

IMG 20241202 113820 368
